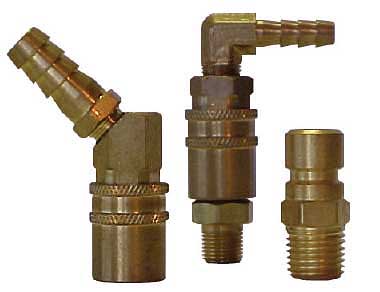

Mold Coolant Coupler
Click Here to Go Back to Mold Coolant Quick Couplers
Range: -90°F to +400°F (-68°C to +205°C)
| Performance Specifications |
Operating Bar (PSI) |
Burst Bar (PSI) |
Unvalved Flow Rate LPM (GPM) |
|---|---|---|---|
| 1/4" | 14 (200) | 69 (1,000) | 23 (6) |
| 3/8" | 14 (200) | 69 (1,000) | 50 (13) |
| 1/2" | 14 (200) | 69 (1,000) | 132 (35) |
| Series Interchange |
Foster (Series) |
Hansen | Tomco | Parker |
|---|---|---|---|---|
| 1/4" | 'FJT' | Flo-Temp | MC200 | Moldmate |
| 3/8" | 'FJT' | Flo-Temp | MC300 | Moldmate |
| 1/2" | 'FJT' | Flo-Temp | MC500 | Moldmate |
Quick couplers are used in hydraulic or pneumatic systems to quickly connect lines without losing fluid or fluid pressure. Quick couplers can be used under a range of pressure and temperature conditions. Quick-action couplers are ideal for use in applications where fluid loss during connection or disconnection is unwanted. Applications include systems where tools or other devices are routinely connected and disconnected to a central pressure supply. Common working fluids include air or pneumatic, hydraulic fluids, steam, water, oil, fuel, chemical, gas, or solid transfer.
Important factors to think about when searching for quick couplers include body size or diameter, maximum working pressure, and working temperature. Although different series within an interchange will mate with each other and some products are made specifically to couple with several interchanges, in general, they do not readily couple with each other.
