16791N Male Inverted Swivel 45° Elbow
Click Here to Go Back to Male Inverted Swivel 45° Elbow 100R14 Hose Ends
| *Part Number |
Thread Size |
Hose Size (in.) |
Tube Size (in.) |

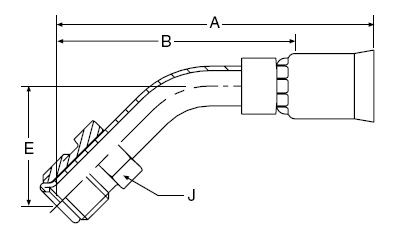

A | Cutoff Allow. B |
E | J (hex) |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | inch | mm | inch | ||||
| 16791N-4-4 | 7/16-24 | -4 | 1/4 | 2.05 | 52 | 1-1/2 | 38 | 0.63 | 16 | 7/16 |
| 16791N-5-5 | 1/2-20 | -5 | 5/16 | 2.48 | 63 | 1-7/8 | 48 | 0.71 | 18 | 1/2 |
| 16791N-6-6 | 5/8-18 | -6 | 3/8 | 2.60 | 66 | 1-15/16 | 49 | 0.96 | 24 | 5/8 |
| 16791N-8-8 | 3/4-18 | -8 | 1/2 | 2.85 | 72 | 2-1/8 | 54 | 0.90 | 23 | 3/4 |
| 16791N-10-10 | 7/8-18 | -10 | 5/8 | 3.30 | 84 | 2-5/8 | 67 | 1.02 | 43 | 7/8 |
| 16791N-12-12 | 1-1/16 - 16 | -12 | 3/4 | 3.64 | 58 | 2-13/16 | 71 | 1.15 | 29 | 1-1/16 |
* - Steel tube, nipple, nut and shell.
